Flexible hoses, hoses for hot air, cold air, chemical and industrial gases
Film blowing machine, extruder cooling air
Printing machinery, blowers and compressors
Air supply: UV dryer, IR dryer, infrared dryer Granule/plastic dryer, hot air dryer
Clean room industry: clean room ventilation, semiconductor production equipment, computer chip manufacturing,
Gas emissions, engine structure, engine heating

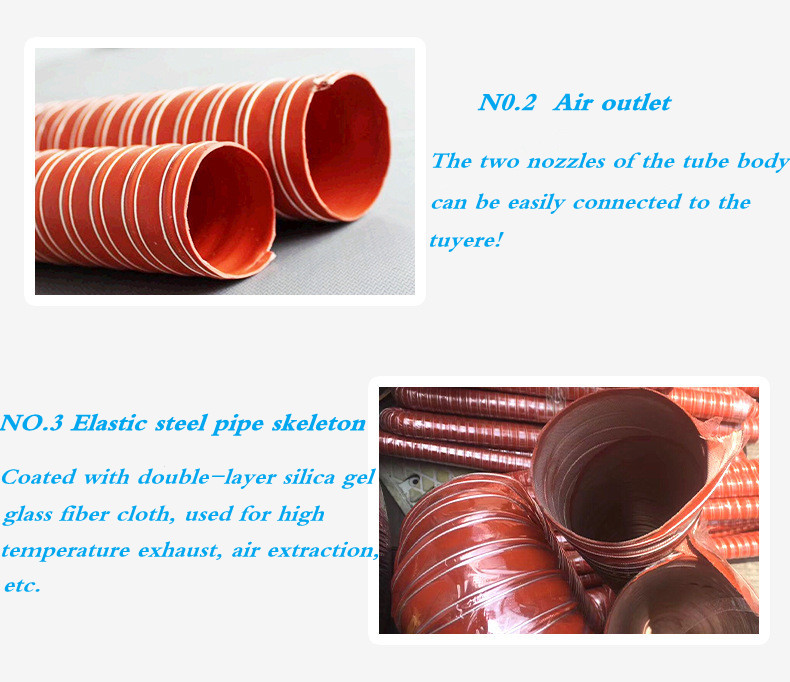

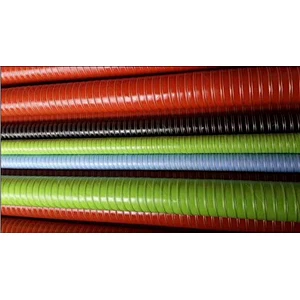

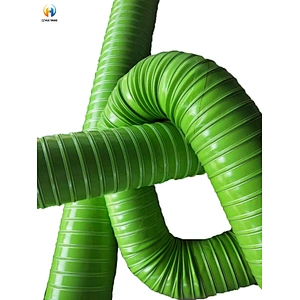

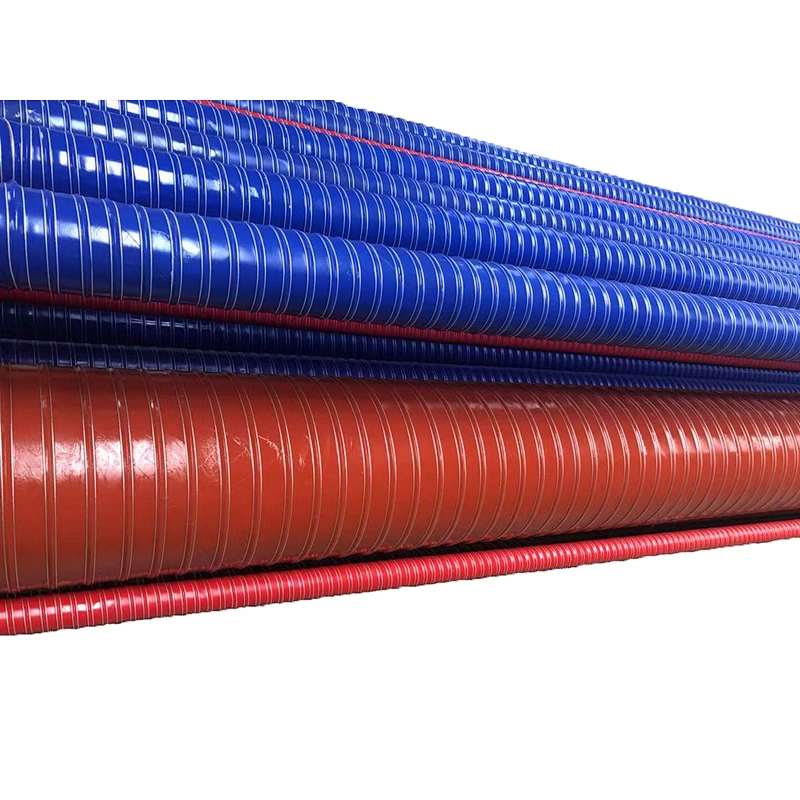

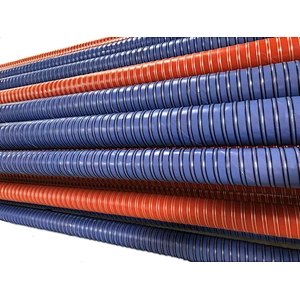

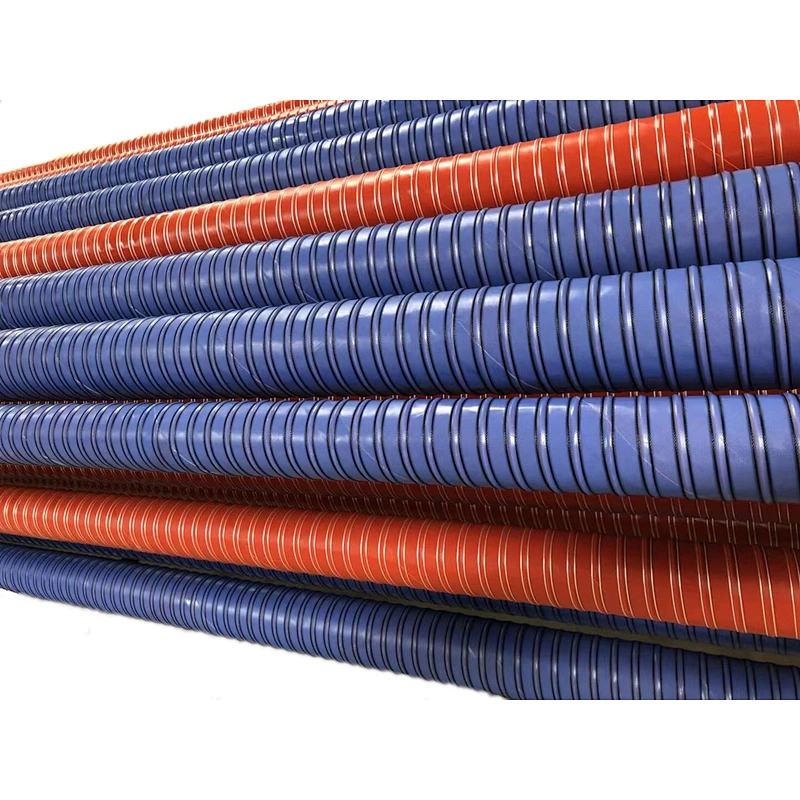

The elastic steel wire is completely covered on the pipe wall
Braided reinforcing tape.

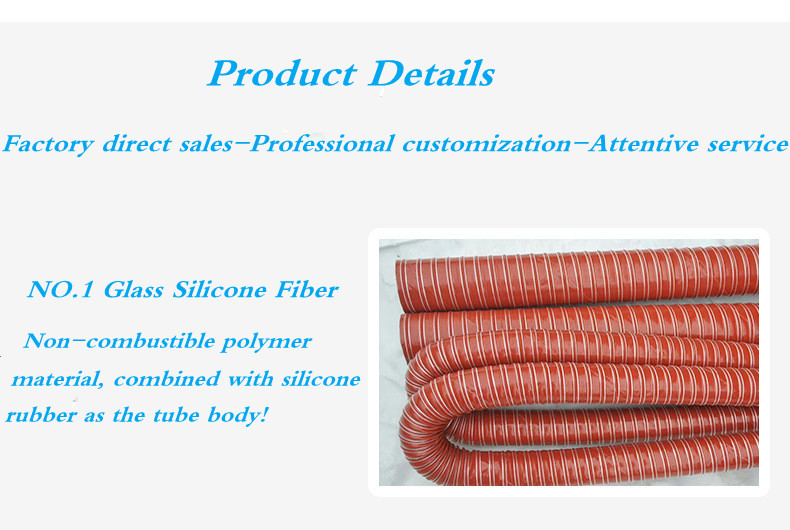

Tube wall: glass fiber coated silica gel Reinforced core

Fiber reinforced

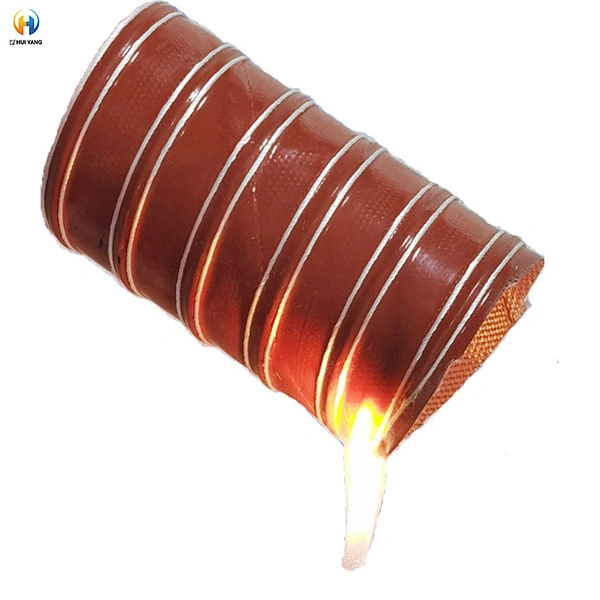

Good high temperature resistance
Anti-leakage
Smooth inner wall
High flexibility
Small bending radius

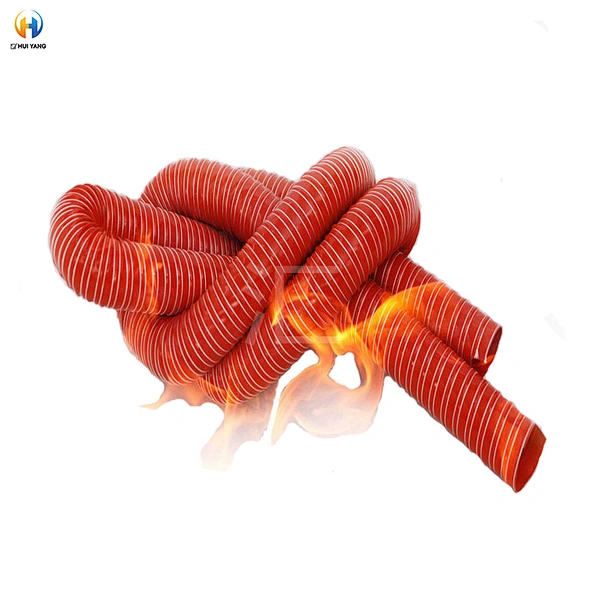

Not easy to knot
Compliant with RoHS regulations

Customized delivery: More diameter and length products can be provided upon request

ID  in / mm	OD mm	positive bar	negative bar	bending riadus mm	weight kg/m	length m
4/20	21	1.800	0.580	12	0.080	4
1/25	29	1.500	0.580	17	0.120	4
1.25 / 32	35	1.500	0.580	19	0.130	4
1.5 / 38	42	1.500	0.580	23	0.170	4
1.65/ 41	45	1.500	0.570	25	0.180	4
1.75 / 43	48	1.500	0.560	26	0.190	4
2 / 50	55	1.500	0.500	30	0.250	4
2.5 / 63	67	1.300	0.500	36	0.300	4
3 / 75	80	1.100	0.390	42	0.410	4
3.1 / 80	84	1.100	0.390	44	0.440	4
3.2 / 83	87	1.100	0.390	46	0.470	4
3.5 / 89	93	1.100	0.380	49	0.500	4
4 / 100	106	1.100	0.300	55	0.570	4
4.5 / 115	119	1.000	0.300	62	0.730	4
5 / 125	132	0.900	0.210	69	0.810	4
6 / 150	157	0.800	0.180	81	1.050	4
6.3 / 160	165	0.700	0.160	85	1.100	4
6.5 / 165	170	0.700	0.150	88	1.180	4
7 / 178	183	0.600	0.140	94	1.210	4
8 / 200	208	0.600	0.100	107	1.380	4
10 / 250	259	0.400	0.100	132	1.650	4
12 / 300	310	0.100	0.070	158	2.000	4
